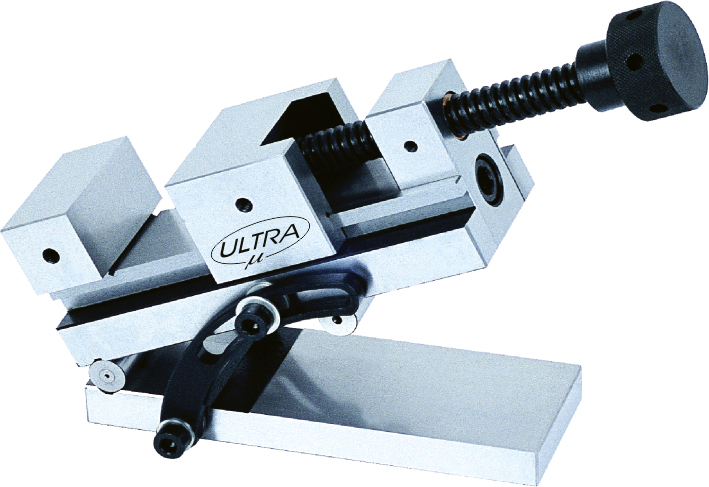

"ULTRA" Brand Sine Vices Screw Type ( Economy Model )

We are Manufacturer, Supplier and Exporter of Sine Vices Screw Type and our setup is situated in Pune, Maharashtra, India.

  • Produced of high quality steel, carburized to surface hadrdness hrc 58 - 62.
  • Parallelism 0.008mm / 100mm squareness 0.015mm.
  • Available inspecting angle and processing working with angle.

Cat No. Size ( mm ) Accuracy C.D ( mm ) Opening ( mm )
UL-83001 175 L x 63 W x 95 H 15 μ 100 0 - 85
UL-83002 235 L x 88 W x 125 H 20 μ 100 0 - 120
UL-83003 285 L x 125 W x 154 H 20 μ 200 0 - 160
